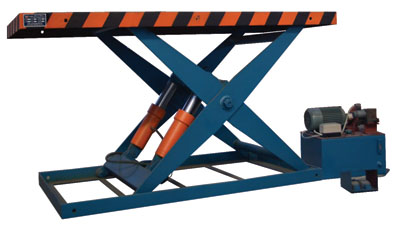

| HS Hydraulic Elevator |
 |
|
|
| Features |
The base frame of the main structure is made up of the welded slotted steel. The support arms both inside and outside is made up of much thicker steel plates with very good rigidity and strong capacity.
The foot switch is used to control the operation which is very simple and makes your hands free.
The diameter of cylinder is 100mm which is specially enlarged. The ball bearings are used for all the turning positions which can avoid the hurt due to uneven load and side force. |
| Basic parameters |
Description
|
Unit
|
Specification HS-3
|
Specification HS-5
|
Platform Size
|
(mm)
|
1200×2300
|
1200×2300
|
Max.Load
|
(kg)
|
3000
|
5000
|
Lowest Hight
|
(mm)
|
360
|
360
|
Max.Ascending Hight
|
(mm)
|
1560
|
1560
|
Cylinder
|
(mm)
|
2×φ100
|
2×φ100
|
Power
|
(kw)
|
2.2
|
3
|
Overall Dimension(L×W×H)
|
(mm)
|
2300×1200×(360~1560)
|
2300×1200×(360~1560)
|
Approx Weight
|
(Tons)
|
1000
|
1200
|
|
| | |   |
|
|
